UHMWPE ASB Rope

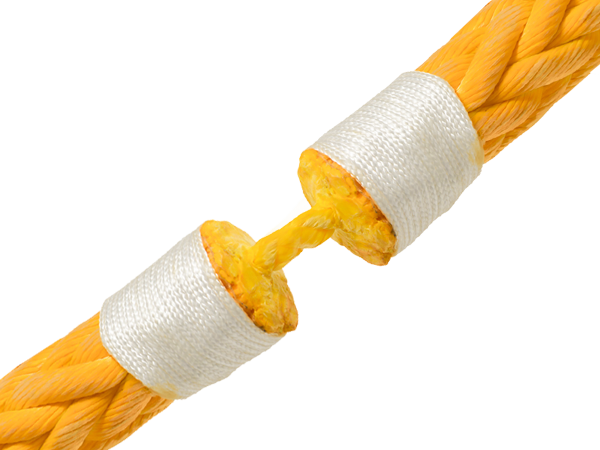

Yasheng Rope in the effort to provide maximum safety in mooring operations, has developed the Yasheng Anti Snap Back (ASB) Rope. The Anti Snap Back Rope is inside with an energy-absorbing core , outside 12 strands synthetic mooring rope . Owing to its construction form, if the outer, load-bearing construction breaks, the ASB core absorbs the snap-back forces . Consequently , ASB transforms the act from a potentially deadly snap to a much safer slump. Advantage is safety to the maximum.
Category:
Product Introduction
Yasheng Rope in the effort to provide maximum safety in mooring operations, has developed the Yasheng Anti Snap Back (ASB) Rope. The Anti Snap Back Rope is inside with an energy-absorbing core , outside 12 strands synthetic mooring rope . Owing to its construction form, if the outer, load-bearing construction breaks, the ASB core absorbs the snap-back forces . Consequently , ASB transforms the act from a potentially deadly snap to a much safer slump. Advantage is safety to the maximum.
UHMWPE Anti Snap Back (ASB) Rope
★Material : 12-Strand UHMWPE Rope + ASB Core
★Longer life, and easy handling
★Specific Gravity : 0.97, floating
★Water Absorption : None, meaning it remains light when working in wet conditions
★Melting Point : 145℃
★Chemical Resistance : Very Good
★UV Resistance : Very Good
★Abrasion Resistance : Very Good
★Low Elongation : 3.5% ~ 4%
Application: Mooring /Tow lines /STS Operations (to be used with synthetic tails)
|
12-Strand UHMWPE Anti Snap Back (ASB) Rope |
||||
|
Diameter （mm） |
Circumference （inch） |
Linear density （ktex） |
MBL （kN） |
ASB Core Dia-(mm) |
|
40 |
5 |
920 |
1224 |
8 |
|
44 |
5-1/2 |
1120 |
1440 |
10 |
|
48 |
6 |
1320 |
1680 |
10 |
|
52 |
6-1/2 |
1540 |
2136 |
12 |
|
56 |
7 |
1810 |
2268 |
12 |
|
60 |
7-1/2 |
2090 |
2580 |
12 |
|
64 |
8 |
2350 |
2868 |
12 |
|
72 |
9 |
2970 |
3552 |
14 |
|
80 |
10 |
3670 |
4296 |
14 |
|
88 |
11 |
4460 |
5160 |
14 |
|
96 |
12 |
5300 |
6264 |
16 |
